Product Description:
The High-Throughput Transmission Fiber Spectrometer is a state-of-the-art instrument that boasts an optical resolution of 0.2-2nm. It is capable of producing high-quality spectra with a wide range of wavelengths from 1080nm to 1330nm. This makes it perfect for use in a variety of applications, including Raman spectrometer and Transmission Imaging Spectrometer.
Features:
- Product Name: High-Throughput Transmission Imaging Spectrometer Quick and Accurate Measurements
- Effective Pixels: 512*1
- Fiber Interface: SMA905 or Ф10mm multi-core optical fiber
- Integration Time: 1ms-3600s
- Dimensions: 253*152*93(mm)
Technical Parameters:
| Wavelength Range | 1080nm~1330nm |
| Dimensions | 253*152*93(mm) |
| Grating Type | VPH volume holographic transmission grating |
| Applications | Spectrometer, Research-grade Raman spectroscopy detection system, 1064nm Confocal Raman microscopy, Integration of industrial Raman system, Chemical Industry Online, Biopharmaceuticals |
| Integration Time | 1ms-3600s |
| Fiber Interface | SMA905 or Ф10mm multi-core optical fiber |
| Diffraction Efficiency | Approximately 90% |
| Cell Size | 25μm*500μm |
Applications:

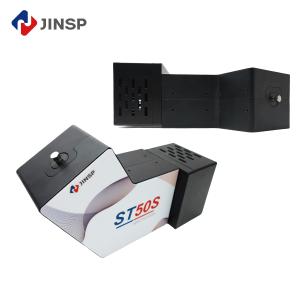

JINSP ST50S is a high-throughput transmission fiber spectrometer that is suitable for various applications. The JINSP ST50S is a product of JINSP Company Limited, a leading supplier of spectroscopic technology, with 17 years of experience in developing spectroscopic technology. JINSP ST50S is one of the over twenty spectroscopic products offered by JINSP Technology.
The JINSP ST50S is suitable for applications in the pharmaceutical and chemical industries, public security, customs, and fiber optic spectrometers. It is a research-grade Raman spectroscopy detection system that can be used in a Raman system. The JINSP ST50S has a VPH volume holographic transmission grating that enhances its performance.
The JINSP ST50S has a fiber interface of SMA905 or Ф10mm multi-core optical fiber, which provides flexibility in its usage. The integration time for the JINSP ST50S is between 1ms-3600s, which allows for quick data acquisition and analysis. This product has not been certified, and its place of origin is China.
Support and Services:
The High-Throughput Transmission Fiber Spectrometer product is backed by our comprehensive technical support and services. Our team of experienced technicians is available to provide assistance with installation, setup, and troubleshooting. We also offer training and educational resources to ensure that you get the most out of your spectrometer. In addition, we provide regular maintenance and calibration services to ensure the accuracy and reliability of your measurements. Contact us today to learn more about our technical support and services for the High-Throughput Transmission Fiber Spectrometer product.
Packing and Shipping:
Product Packaging:
The High-Throughput Transmission Fiber Spectrometer product will be carefully packaged in a sturdy and protective cardboard box to ensure safe delivery. The product will be wrapped in bubble wrap and secured with foam inserts to prevent any damage during transit.
FAQ:
Q1: What is the brand name of this product?
A1: The brand name of this product is JINSP.
Q2: What is the model number of this product?
A2: The model number of this product is ST50S.
Q3: What is the minimum order quantity for this product?
A3: The minimum order quantity for this product is 1.
Q4: What are the payment terms for this product?
A4: The payment terms for this product are T/T and Western Union. The price is negotiable.
Q5: Where is this product manufactured?
A5: This product is manufactured in China.
Q6: What is the supply ability of this product?
A6: The supply ability of this product is 100 PCS/70-90 days.
Q7: What is the delivery time for this product?
A7: The delivery time for this product is 40-70 working days.
Q8: What are the packaging details for this product?
A8: The packaging details for this product are customized packaging.
